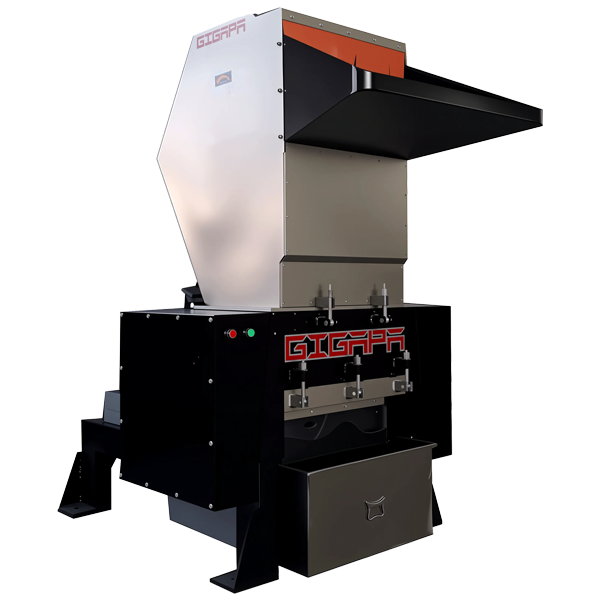

Machine Introduction
The granulator is designed for efficient fine crushing and granulation of recyclable materials. The machine uses a high-speed rotating rotor equipped with multiple moving knives, which work together with fixed stator knives to cut materials into uniform particles.
Materials are fed into the crushing chamber and repeatedly cut until they become small enough to pass through the screen mesh beneath the rotor. The screen size can be customized according to the required final particle size.
With its compact structure, high-speed cutting system, and optimized blade arrangement, the granulator delivers high output efficiency, consistent particle size, and stable operation. It is an ideal solution for recycling lines requiring precise and uniform material granulation.
Typical applications include the following:
- Plastic bottles, plastic pipes, films, sheets, injection molding scraps, and plastic containers
- Woven bags, plastic pallets, appliance housings, and engineering plastics
- Rubber scraps, cables, and lightweight electronic waste
- Wood chips, wood offcuts, and biomass materials
- Aluminum profiles, aluminum cans, and other light metal scraps
The machine is commonly used in plastic recycling plants, waste processing lines, granulation systems, and industrial recycling applications.
Model Parameters:
| Model | GSG-M306 | GSG-M308 | GSG-M408 | GSG-M508 | GSG-M512 | GSG-M612 |
| Rotation Diameter (mm) | φ320 | Φ320 | Φ420 | φ520 | φ520 | φ660 |
| Rotor Length (mm) | 600 | 800 | 800 | 800 | 1200 | 1200 |
| Screen Aperture (mm) | φ12 | φ12 | φ12 | φ12 | φ12 | φ12 |
| Motor Power (kW) | 22 | 30 | 37 | 45 | 75 | 90 |
| Dimension (L×W×H) (mm) | 1400×1180×2220 | 1400×1380×2220 | 1580×1450×2310 | 2170×1780×3100 | 2170×2180×3100 | 2490×2280×3350 |
| Weight (kg) | Approx 1500 | Approx 1800 | Approx 3100 | Approx 4300 | Approx 5400 | Approx 7200 |
The above models are general standard models. Please contact our staff for other required models, and we can also provide customized services based on your requirements.
Technical Highlights
Uniform Granule Size
Optimized rotor and screen design ensure consistent particle size for downstream recycling processes.
High Cutting Efficiency
A high-speed rotor combined with sharp moving and fixed knives provides fast and efficient crushing performance.
Durable Blade System
High-strength alloy steel knives offer excellent wear resistance and extended service life.
Easy Screen Replacement
Interchangeable screen mesh allows flexible adjustment of the final output size.
Stable & Reliable Operation
Heavy-duty structure and balanced rotor reduce vibration and ensure smooth operation.
Convenient Maintenance
Open-type crushing chamber design enables quick blade adjustment, cleaning, and maintenance.
Wide Material Compatibility
Suitable for plastics, rubber, wood, cables, films, light metals, and various recyclable materials.
