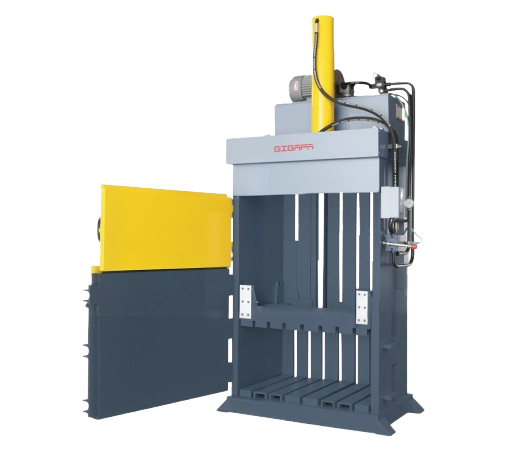

Machine Introduction
The hydraulic vertical baler is designed to efficiently compress loose recyclable materials into compact and dense bales. The machine uses a hydraulic system to apply strong vertical pressure, significantly reducing material volume and improving storage and transportation efficiency.
Materials are manually or automatically loaded into the compression chamber. After compression, the finished bale is tied manually and ejected from the machine for easy handling and transportation.
With its compact structure, simple operation, and stable hydraulic performance, the vertical baler provides an economical and practical solution for waste recycling and material management. It is especially suitable for facilities with limited installation space.
Typical applications include the following:
- Cardboard, carton boxes, paper waste, and newspapers
- Plastic films, PET bottles, woven bags, and plastic packaging materials
- Textile waste, clothing, cotton, fabric scraps, and fiber materials
- Aluminum cans, soft metal scrap, and light industrial waste
- Foam, sponge, agricultural waste, and other loose recyclable materials
The machine is widely used in recycling centers, warehouses, supermarkets, printing factories, textile factories, packaging plants, and manufacturing industries.
Model Parameters:
| Model | GSB-V0604 | GSB-V0606 | GSB-V1107 | GSB-V1208 |
| Bale Size (L×W×H) (mm) | 600×400×(400-640) | 800×600×(300-800) | 1100×700×(500-950) | 1200×800×(500-950) |
| Number of Straps (PCS) | 4 | 4 | 4 | 4 |
| Main Cylinder Force (T) | 16 | 31.5 | 25×2 | 31.5×2 |
| Hydraulic Power (kW) | 2.2 | 4 | 5.5 | 7.5 |
| Dimension (L×W×H)(mm) | 950×760×2070 | 1150×960×2850 | 1580×1080×3140 | 1680×1160×3280 |
| Weight (kg) | Approx 500 | Approx 850 | Approx 1500 | Approx 1850 |
The above models are general standard models. Please contact our staff for other required models, and we can also provide specialized customization services based on your needs.
Technical Highlights
High Compression Efficiency
Powerful hydraulic system delivers high compression force, producing dense and compact bales.
Space-Saving Design
Vertical structure requires less floor space, making it ideal for factories, warehouses, and recycling stations.
Easy Operation
User-friendly control system enables simple and convenient operation with low labor requirements.
Stable Hydraulic System
High-quality hydraulic components ensure reliable performance and long service life.
Reduced Transportation Costs
Compressed bales greatly reduce storage volume and transportation expenses.
Wide Material Compatibility
Suitable for cardboard, plastics, textiles, films, cans, foam, and various recyclable materials.
Optional Customization
Different chamber sizes, bale sizes, feeding methods, and power configurations can be customized according to customer requirements.
